ΚΕΡΑΙΑ PASSIVE NAVTEX BANTEN 11194

ΚΕΡΑΙΑ PASSIVE NAVTEX BANTEN 11194

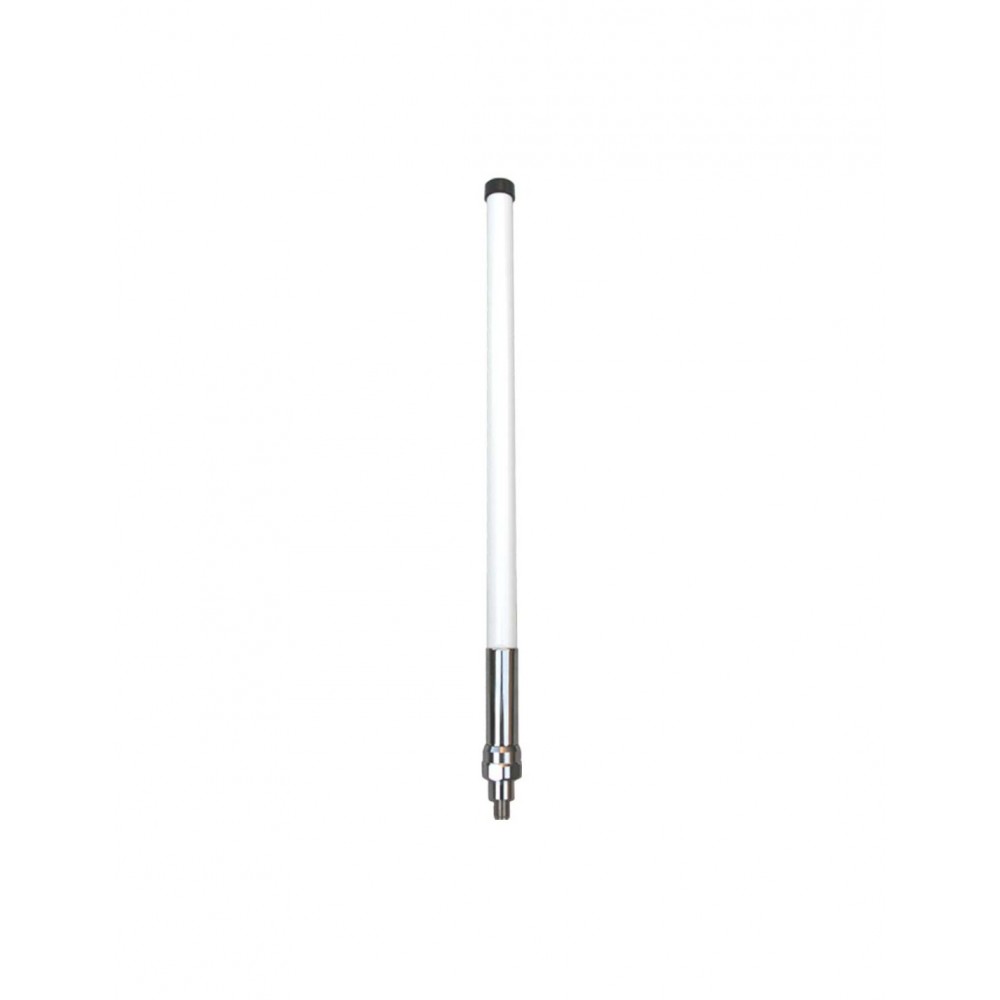

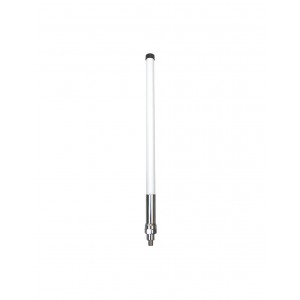

Κεραία PASSIVE BANTEN 11194 για δέκτη NAVTEX.

Συχνότητες 490 - 518 KHZ.

ΤΕΧΝΙΚΑ ΧΑΡΑΚΤΗΡΙΣΤΙΚΑ

Band                                                                                                                           Passive Navtex

Frequency

490 - 518 Mhz

S.W.R.

see the diagram if is available

Impedance

50 Ohm

Polarization

Vertical

Cable or connectors

PL connector

Exit connection

bottom exit

Lighting protection

DC Ground

Style

fiberglass whip

Length

0,50 m

Weight

0,60

Ext dia

bottom dia 28 mm

Ferrule

Chrome plated brass

Finishing

poliurethane paint

Mount

with bolt 1" GAS included

Wind max resistance

5 N at max wind speed

Typology

antenna
